Finnmark FD-5 Trinity XL Infra-Steam Sauna for 4 People (Infrared + Steam + Red Light All-In-One Sauna)
- 4-Person Indoor Sauna + Heaters
- 75" Wide x 64" Deep x 83" Tall
- 3-in-1 Sauna: Infrared, Red Light & Traditional Heat (Steam)
Possible Coupon(s): Reveal
Your Selected Add-Ons
Optional Accessories...
About the FD-5 Trinity XL Infra-Steam Sauna
All-in-One Sauna
with both an electric heater and a full-spectrum Infrared heater (see other combo saunas)
All-Glass Door
beautiful full-height glass door on the front
All-in-One Sauna
with both an electric heater and a full-spectrum Infrared heater (see other combo saunas)
All-Glass Door
beautiful full-height glass door on the front
3-in-1 Combo
full-spectrum Infrared (IR) + red light therapy + traditional steam sauna all in one
Full Spectrum IR
long-wave Spectrum Carbon 360° IR panels + short-wave Spectrum Plus™ IR panels
UL Listed Heaters
combo sauna includes true UL-listed infrared heaters with a traditional 1.9kW 120v heater
Spectrum Red Light™
192-diode medical grade LED panel produces 650nm of red light therapy + chromotherapy
Thermal Plus™ Aspen
exterior with antimicrobial western cedar interior prevents mold, bacteria & fungus
3-in-1 Combo
full-spectrum Infrared (IR) + red light therapy + traditional steam sauna all in one
Full Spectrum IR
long-wave Spectrum Carbon 360° IR panels + short-wave Spectrum Plus™ IR panels
UL Listed Heaters
combo sauna includes true UL-listed infrared heaters with a traditional 1.9kW 120v heater
Spectrum Red Light™
192-diode medical grade LED panel produces 650nm of red light therapy + chromotherapy
Thermal Plus™ Aspen
exterior with antimicrobial western cedar interior prevents mold, bacteria & fungus
Additional Information
4-Person Home Sauna with Infrared & Traditional Heater
The Finnmark FD-5 is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater, plus true medical grade Spectrum Red Light™ Therapy. The sauna also includes a Bluetooth audio system and lighting to ensure you get the full experience.
- Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.
- Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
- Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
- Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
- 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
- Built-in LCD touchscreen controller with Bluetooth audio.
- Audio with 6" HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.
- Extra large two-tier bench system
- Low EMF sauna tested by a NASA award winning testing facility.
- High Emissivity infrared heaters

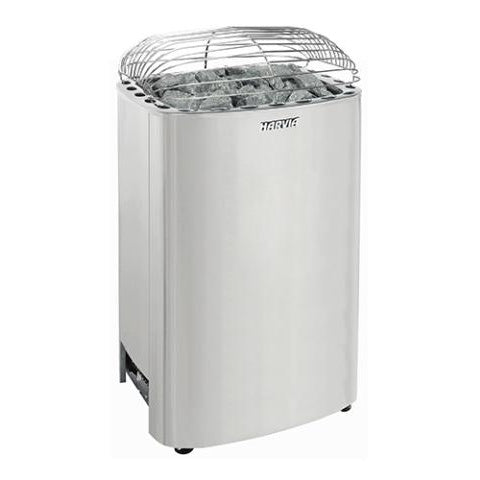

Harvia KIP Series B 4.5KW Sauna Heater
- Wall-mounted
- Stainless steel construction
- 4.5kW
- For sauna rooms from 100 to 210 cu. ft.
- Built-In controls
- Industrial grade, serviceable heating elements
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16" W (406mm) x 11" D (279mm) x 24" H (609mm)
- 2-Year Warranty (Consumer Use)
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series B 4.5kW Sauna Heater
- 1 Box of the Harvia AC3000 0-10cm sauna stones (44 lbs)
- Medical Grade LED Red light therapy at 650nm plus color chromotherapy
- V2 LCD Controller 5" touchscreen controller with Bluetooth
- ETL Certification
- Limited Warranty
| Model | FD-5 |
|---|---|
| External Materials | Thermo-Aspen |
| Interior Materials | Western Canadian Cedar |
| Volts | 240 |
| IR Watts | 2700 |
| Amperage | 15 | TBD |
| Plug Type | NEMA 6-15 |
| Maximum Temperature | IR 170° F | Traditional 190° F |
| Interior Dimensions | 71" W x 57.5" D x 75.5" H |
| Exterior Dimensions | 75" W x 64" D x 83" H |
| Room Volume | 130 cu. ft. |
| Door Dimensions | 23.625" W x 68.875" H |
| Door Handle Dimensions | 1.5" W x 13.25" H |
| Glass Thickness | 8mm W/Gasket |
| Product Weight | 575 lbs |
| Shipping Dimensions | 80" W x 40" D x 83" H |
| Shipping Weight | 840 lbs |
| Model | KIP45B |
|---|---|
| Kilowatt Rating | 4.5kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 100 |
| Maximum Adjusted Cubic Feet | 210 |
| Voltage | 240V |
| Phase | 1PH |
| Amperage | 18.8 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
- The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
- The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna. As a result, you're able to work up the best possible sweat in the least amount of time.
- Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
- Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
- Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
- Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.
Shipping
shipping of this sauna room is FREE to the contiguous 48 states!The weight or packaging of this product requires delivery by special appointment and on a wooden pallet. The driver is responsible for curbside delivery “only" and will lower the pallet to ground level.
Prior to shipping this product, the delivery company will contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Installation & Operation Manual - view / download
LCD Controller Manual - view / download
Info Sheet - view / download
Sauna Diagram - view / download
EMF Test Report - view / download
UL Listing Report - view / download
Finnmark Warranty - view / download
Finnmark Certification - view / download
ETL Certification Report - view / download
Harvia KIP Heater Owner's Manual - view / download
Stones Information - view / download
